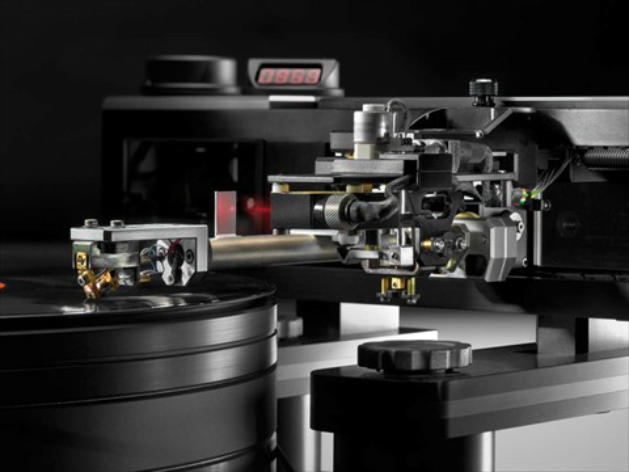

Dereneville DTT-01-C
The border of the physical limits
After more than four years of research, our vision of building a tangential tonearm that excludes all previous disadvantages and plays in the most gentle way for needle and sound carrier became reality. The result was a globally unique, active high-end tonearm that scans your records gently and with unprecedented perfection.
Dereneville | Rothert Strasse 8 | Lippstadt |ZIP-Code: 59555 | Tel: +49 (0)2941 6691118
IMPRESSUM
Disclaimer
Facts.
• Housing h 85 mm, w 80 mm, l 390 mm • Total height 100 mm • Weight 2.7kg • Supply voltage 12 V External analog power supply 12V Dereneville DPS-12V DC (included) • Current consumption operation 0.3A - 0.6A depending on the load • Current consumption idle < 10mA • Current consumption standby / off < 10mA • Display 1 4 x 7 segments, rotatable, brightness adjustable • Operating elements 1 One-handed operation with rotary push button • USB1SW service • Service Plug 1 Service and special functionsTechnical Details.
Positioning 1 The tonearm is permanently aligned optimally to the record groove. The playback angle is continuously monitored by a high-precision laser A high-precision, decoupled, permanently driven, electromechanical system with a positioning accuracy of less than 0.001 mm ensures the propulsion of the arm Lift 1 electromotive lift, raises and lowers the tonearm perfectly. Even in special situations, such as: at the end of the record, the tonearm can be raised automatically if desired. If the DTT detects a standstill of the tonearm, the tonearm rises to protect the needle and the record. Muting 1 A muting circuit ensures that your amp is only connected to the pickup when the tonearm is fully lowered. Operation 1 Our one-hand operation with the rotary pushbutton and our SMI (Smart Menu Interface) makes handling the DTT easy and intuitive. At the same time you retain full control over the DTT attributes changeable Attribute VTA angle in play mode - 14 mm in total excellent performance with almost all pickups. sonically superior to any other concept. Color Also available in other metallic finishes and colors Scope of delivery. 1 tangential tonearm, ready to use 1 aluminum flight case with handle with foam inserts for safe transport 1 power supply
This Arm can only be bought
directly at Dereneville Germany.
